 Hearth Products


AUTO-DRAFT® RT-SERIES CHIMNEY FANS

With the Auto-Draft® Chimney Fan your hard starting or back-drafting fireplace, stove, BBQ, or heater draws immediately and perfectly every time. Great for chimneys that are too short or that face heavy winds. Enjoy fires without the smoky back up--even with moist or hard to ignite types fuels. Once the fire is burning, adjust the variable speed control knob to achieve maximum efficiency. Great for noise sensitive installations. Connects easily with metal or tile lined flues. Lower power consumption even at full speed. The RT-Series Chimney Fans are the only fans rated for 1000° F (538° C), more than twice the temp rating of competitors. We guarantee satisfaction with our (1) Year Unconditional and (2) Year Mechanical Warranty.

Auto-Draft® Fan Features:

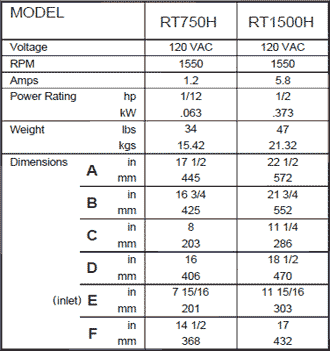

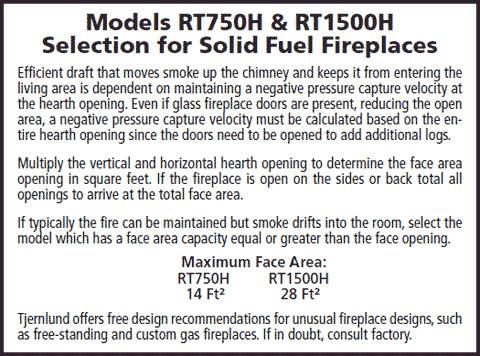

  • RT750H & RT1500H Include Speed control

  • PSC ball bearing motors with -40°F low temperature lubricant

  • Patented motor cooling system automatically activates, extending motor life

  • Clamshell design for easy installation, inspection and service

  • High performance backward inclined impeller repels soot

  • High temperature powder coat finish

  • Chimney fan demo unit available for testing on your own chimney. Contact atjernlund@tjfans.com for deposit and rental details.

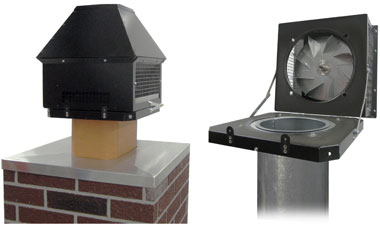

Rooftop Chimney Fan
Support Documents

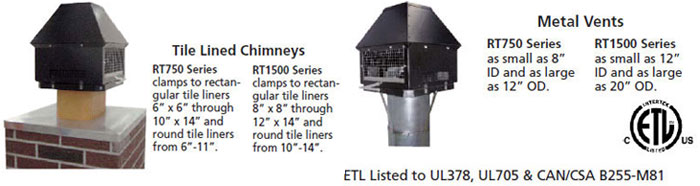

Rooftop Chimney Fans
Click on the video to watch the Rooftop Chimney Fan highlights.










AUTO-DRAFT® MODEL AD-1 INDUCER FAN FOR WOOD OR COAL STOVES

With the Auto-Draft your hard starting stove draws immediately. No smoky back up--even with moist or hard to ignite types of wood. Once the fire is burning, adjust the variable speed control knob on the electrical box to achieve the maximum efficiency of your stove. The Auto-Draft provides for total utilization of your wood, leaving only a fine ash residue in most cases.

Fits Most Wood or Coal Burning Stoves


The Auto-Draft can be installed on any wood or coal burning stove pipe 5" to 8" in diameter. It is designed to solve draft problems without increasing the height or diameter of the chimney.



Auto-Draft® Inducer
Support Documents
Full Line Lit
Hearth & Ventilation Lit
AD-1 Lit
AD-1 Inst


Complete Doc Library

Model AD-1 Advantages

  • Eliminates Smoke
  • Starts Fires Fast
  • Utilizes Fuel Efficiently
  • Broadens Ranges of Usable Fuels
  • Operates on Standard 115 VAC
  • Easy to Install (15 Minutes)
  • Constructed of Heavy Duty Materials
  • Minimal Maintenance
  • Rich, Heat Resistant Finish
  • Maximum Energy Efficiency


Click to Watch

Specifications

Dimensions Electrical
Height 9 1/2" Voltage 115 VAC
Width 9" Motor RPM 1200-1600
Depth 7" Motor HP 1/14 (open)
Fits 5-8" Pipes Motor Amps 1 (max.)

HOT SHOT MODEL SB1 UNIVERSAL STOVE BLOWER

Make your home more comfortable and get more heat from your stove!

The Hot Shot Universal Stove Blower model SB1 captures and distributes radiant heat from your stove that is otherwise wasted. The Hot Shot silently pushes room air between the "Heat Capture Chute" and the stove top, warming it along the way and then propelling it into the room. Use the Directional Chute attachment and turning vanes to direct the warmed air left or right up to 45 degrees or straight to extend Heat Capture Chute. Entire rooms can be warmed fast and uniformly. Easy plug in electrical, installs without tools in minutes on most stoves.

For stoves without a heat shield, add the "Heat Shield Kit" (950-9200)



HOT SHOT Stove Blower
Support Documents
Full Line Lit
Hearth & Ventilation Lit
SB1 Inst
SB1 Heat Shield Inst

Complete Doc Library

Hot Shot Stove Blower

Warms entire rooms 5 times faster! Saves on energy bills!

Whisper quiet operation

  • Low sone cross flow blower (1.15 sones) makes it 50% quieter other stove blower fan designs

Easy to install

  • Clips to stove's heat shield

  • Turn on or off with pre-wired toggle switch

  • Removable hood attachment to fit step-top stoves

Blends with any decor

  • Commercial grade, high temperature jet black finish

  • Low profile design rests flush with short or long top stoves


Heat Shield
Optional Heat Shield Kit (P/N 950-9200)


Specifications

Model Voltage Watts Sones RPM CFM
SB1 115 25 1.15 1800 75

Hot Shot Dimensional Drawing

AIRESHARE ROOM-TO-ROOM & LEVEL-TO-LEVEL TRANSFER FANS
Make hot or cold rooms more comfortable!

Tjernlund's AireShare moves air either Room-to-Room or Level-to-Level to rooms that are too hot or cold. Quiet and low-profile, the AireShare is perfect for space heater, wood stoves, fireplaces, and split systems applications.

Energy Efficient Products

AireShare
Support Documents
Full Line Lit
Hearth & Ventilation Lit
AS1, AS1P, ASLL Lit
AS1, AS1P Specs
Case Study
AS1 Inst
AS1P Inst
ASLL Inst

Complete Doc Library

Blends with any decor

  • Classic grille and sleek diffuser

  • No exposed electrical cords

Whisper quiet operation

  • Low sone cross flow blower (1.5 sones)

  • 50% quieter than any other through wall or floor fans

Easy to install

  • Quickly installs in interior finished walls or floor/ceilings.

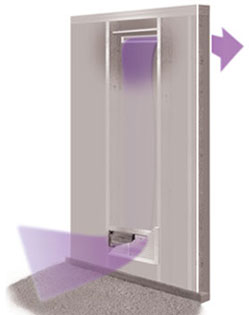

AireShare Room-to-Room Transfer Fans (Models AS1 & AS1P)
Move air Room-to-Room. The blower and diffuser can be mounted either high or low on the wall. Pull cool air from floor level or warm air from ceiling level and distribute the air high or low. Choose either the hard-wired version and activate it off of a wall switch or thermostat or the plug-in version with a switch on the unit. Grilles included.


Pull air from any level and
distribute high or low.




Model AS1


Model AS1P



Click to Watch

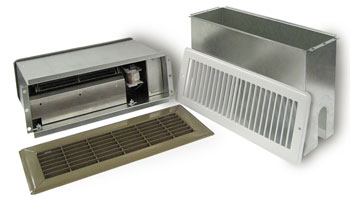

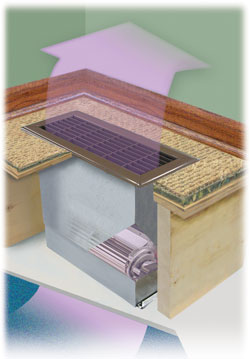

AireShare Level-to-Level Transfer Fan (Model ASLL)
Move air Level-to-Level. This unit can either blow air up to a higher level or, when installed in the opposite orientation, down to a lower level. Move stove or fireplace heat up or down a level or move cool air from a basement up to the main living space. Hard-wired. Can be activated by switch on unit or wired with a wall switch or thermostat. Grilles included.





Model ASLL


Click to Watch

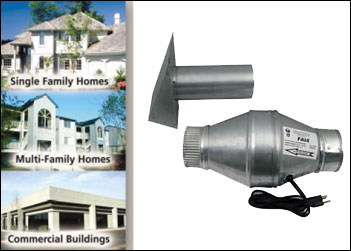

IN-FORCER MODEL FAI4 FRESH AIR INTAKE

In-Forcer
Support Documents
Full Line Lit
Hearth & Ventilation Lit
FAI4 Inst


Complete Doc Library

THE PROBLEM:
Energy-conserving homebuilding materials and techniques minimize fresh air intake...a major cause of illness, discomfort and structural damage.
THE SOLUTION:
The IN-FORCER mechanically draws outside air indoors to dilute pollutants and replace stale air without sacrificing energy savings.

The FAI4 Powered Air Intake provides a simple and economical way to provide fresh, outside air to dilute trapped pollutants and replace air vented by exhaust fans and fuel burning equipment. Plug into a switched outlet, use a remote on/off switch or a plug-in timer to operate on a desired schedule. Standard 4" flex or metal duct may be used for ducting. The efficient 75 CFM fan consumes only 18 watts.

The IN-FORCER model FAI4 offers all these advantages

Affordably priced and installs fast. Plugs into electrical outlet.   Reduces cold drafts through windows, doors, fireplaces caused by excessive negative pressure.
  Reduces negative pressure a major cause of flue gas spillage and radon gas entry. Reduces moisture, mold mildew buildup.
  Increases security--fresh air can be brought in even when windows and doors are locked. Helps replace air vented by exhaust fans, fireplaces, etc.



FAI4 Specifications

Dimensions Electrical
Intake Hood Inlet 4" Voltage 115 VAC
FAI4 Inlet/Outlet 4" Motor RPM 2800
Air Flow   Motor Watts 18
CFM 75 Motor Amps .2
