M-Series Fans
Support Documents

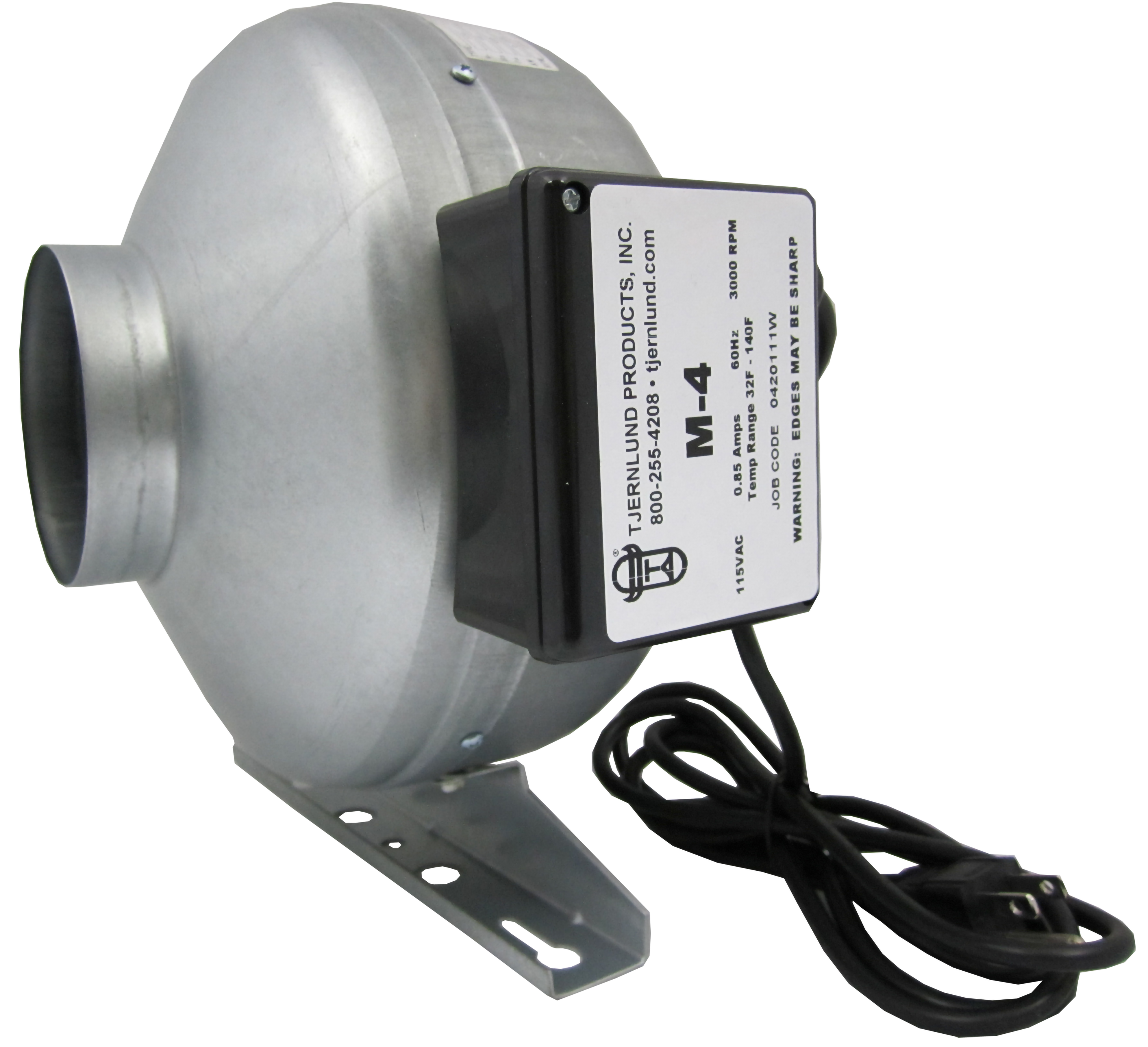

M-Series fans (metal housing) are ideal for long runs or air supply and exhaust applications requiring exacting performance.
Specifications
| Model | Amps | Watts | RPM | Volts | CFM VS Static Pressure 0″ 1/8″ 1/4″ 3/8″ 1/2″ 3/4″ 1″ 1 1/2″ 2″ | Duct Dia. | Weight |
| M-4 |
.9 |
100 | 3000 | 120 | 200 190 185 175 165 145 110 35 — | 4″ | 9 LBS. |
| M-6 | 1.1 | 125 | 3000 | 120 | 530 510 490 465 440 375 310 175 — | 6″ | 13 LBS. |
| M-8 |
1.8 |
210 | 3000 | 120 | 670 655 635 585 565 540 485 380 260 | 8″ | 15 LBS. |
| M-10 | 2.1 | 260 | 3000 | 120 | 810 800 740 660 630 600 510 400 260 | 10″ | 16 LBS. |
