SideShot® Model SS1
Sideshot® Model SS1 application tables
SideShot® Model SS1
Support Documents
Verify that the total BTU/hr input of the heating appliance(s) fall within the proper category listed below. Please note the capacity differs between the SS1, SS1C and SS2. To determine equivalent feet, add the total length of straight vent pipe plus 10 feet for each 90 degree elbow and 5 feet for each 45 degree elbow. Vent runs over 15 linear feet should use an approved, insulated vent connector to prevent problems related to condensation. Multiple appliance interlocks require the use of our MAC-Series Multiple Appliance Controls.
The SS1 & SS1C feature a bottom or rear vent connection. The inlet collar accepts any brand or type of 6″ diameter vent pipe.
SS1 Capacity
Model | Natural and LP Gas | Flame Retention Oil Burner | Conventional Oil Burner | Max. Equivalent Feet |
SS1 | 50,000-160,000 Btu/hr | 50,000-220,000 Btu/hr 1.55 gal/hr. max. | 50,000-180,000 Btu/hr 1.25 gal/hr. max. | 50 feet |
SS1C (Discontinued) Capacity
(For larger residential and commercial applications)
Model | Flame Retention Oil Burner | Conventional Oil Burner | Max. Equivalent Feet |
SS1C (Discontinued) | 50,000-315,000 Btu/hr 2.25 gal/hr. max. | 50,000-223,000 Btu/hr 1.59 gal/hr. max. | 50 feet (15.2 meters) |

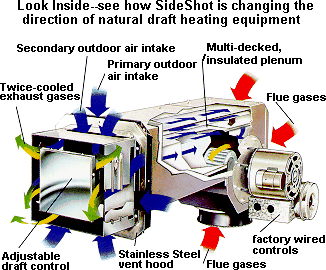

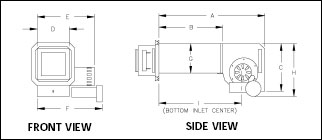

SS1/SS1C (Discontinued) Dimensions
A | B | C | D | E | F | G | H | I |
27 3/8” | 16 1/2″ | 12 1/4″ | 8” | 13 3/4″ | 15 1/8” | 7 3/4″ | 14 3/4″ | 23 1/4″ |
Note: The SS1 requires an 8″H x 8 3/8″W opening through the wall
Related Products
GPAK/HS-Series
Side Wall Vent Systems save time and money and are excellent for electric to gas/oil, renovations, new construction or for replacing deteriorated chimneys. Sidewall venting saves costly materials and labor on two, three or more story runs.
HS Series Models: HSJ, HS1, HS2
Used for Sidewall venting residential/light commercial natural gas, LP or oil fired equipment including: furnaces, boilers, water heaters and unit heaters. All models feature the UC1 Universal Control and a diaphragm Fan Proving Switch safety interlock which will shut down the heating equipment if a venting malfunction occurs.
HS3, 4, 5 Series Commercial Power Venters
Used for Sidewall venting commercial natural gas or LP fired equipment including: boilers, water heaters and unit heaters. All models feature the UC1 Universal Control and a diaphragm Fan Proving Switch safety interlock which will shut down heating equipment if a venting malfunction occurs.
