SideShot® Model SS2
SideShot® Model SS2
Support Documents
Sideshot® Model SS2 application tables
Verify that the total BTU/hr input of the heating appliance(s) fall within the proper category listed below. Please note the capacity differs between the SS1, SS1C and SS2. To determine equivalent feet, add the total length of straight vent pipe plus 10 feet for each 90 degree elbow and 5 feet for each 45 degree elbow. Vent runs over 15 linear feet should use an approved, insulated vent connector to prevent problems related to condensation. Multiple appliance interlocks require the use of our MAC-Series Multiple Appliance Controls.
SS2 Capacity
Model | Flame Retention Oil Burner | Fan Assisted Natural & LP Gas | Atmospheric Natural & LP Gas | Max. Equivalent Feet |
SS2 | 70,000-168,000 Btu/hr | 40,000-150,000 Btu/hr | 40,000-125,000 Btu/hr | 50 feet |
Maximum capacity based on 13% CO2 and Max. 500˚ F. inlet temperatures. Consult factory for details.

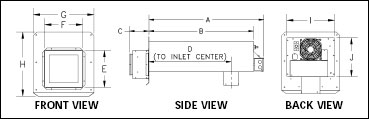

SS2 Dimensions
A | B | C | D | E | F | G | H | I | J |
32 1/2″ | 28 1/2″ | 5 1/2″ | 22 3/8” | 7 3/4″ | 8” | 12 1/2″ | 13 1/4″ | 10 1/2″ | 8 1/2″ |
Note: The SS2 has a 4″ vent connector. Install full size vent pipe and reduce at SS2 connector.
The SS2 requires an 8 1/2″H x 10 1/2″W opening through the wall.
