 Tjernlund Rooftop Draft Inducers


The Alternative to In-Line Inducers

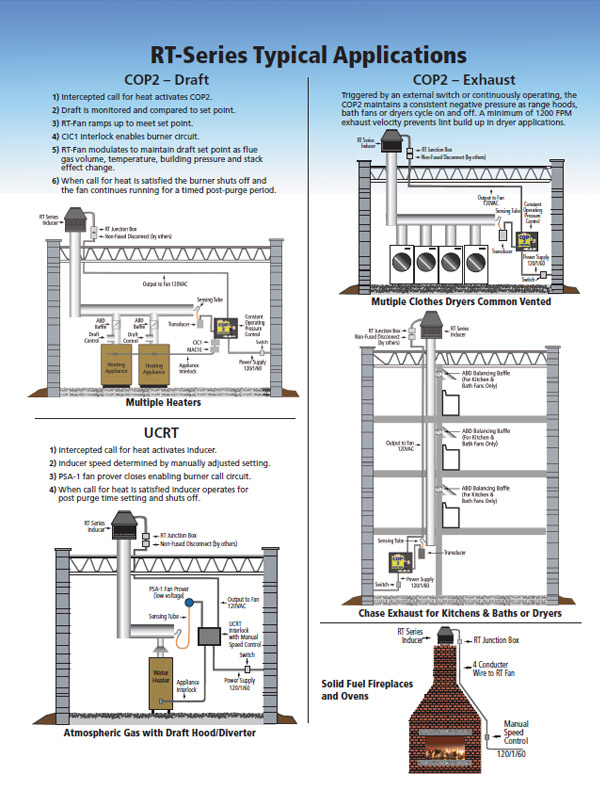

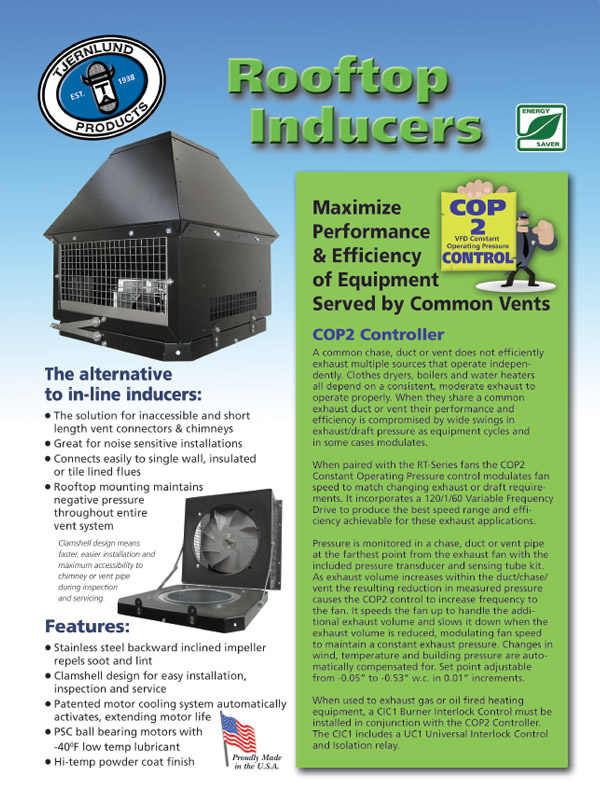

RT-Series rooftop draft inducers for gas, oil, solid fuel and general ventilation applications keep the entire vent system under a negative pressure. The RT-Series are suitable for either metal or tile lined flues and feature removable hinge pins for easy installation & service.

Once installed, the fan assembly can be swung away from the base for direct access to the chimney interior during inspection or cleaning. Speed adjustability fine tunes performance, self-cleaning backward inclined fan blades repel soot build-up and a patented auxiliary cooling system protects the motor from excessive heat. Gas & oil models include a fan proving switch and can be paired with Tjernlund's interlock controls for automatic and safe operation.

Can be used as a chimney fan in solid fuel fireplaces. Hearth versions include a speed control with the chimney fan.

**IMPORTANT - XCOP1 and DCOP1 Information**
*The XCOP1 and DCOP1 controllers have been replaced by the COP2 Controller. Do not use the COP2 with gas or oil fired heating equipment without interlocking all burners being served with a CIC1 Interlock Control and the required number of MAC-Series Multiple Appliance Controls.
Rooftop Inducer
Support Documents
LITERATURE
Full Line Lit
Rooftop Draft Inducer Lit
RT750, RT1500 Submittal

RT750H, RT1500H Submittal
RT750 Series Fan Curve
RT1500 Fan Curve
UCRT, MAC1E, MAC4E, WHKE Spec
INSTRUCTIONS
RT750(H), RT1500(H)
RTS8, RTS12 Mount Kit
DH-Series Discharge Hoods
UCRT Rooftop Speed Control w/UC1

(See IMPORTANT Info to left)

COP2 Controller
CIC1 Heater Interlock Control
