Dryer Duct Booster®, Duct Booster® Supply & Exhaust Fans
Tjernlund Dryer Duct Booster® Fans

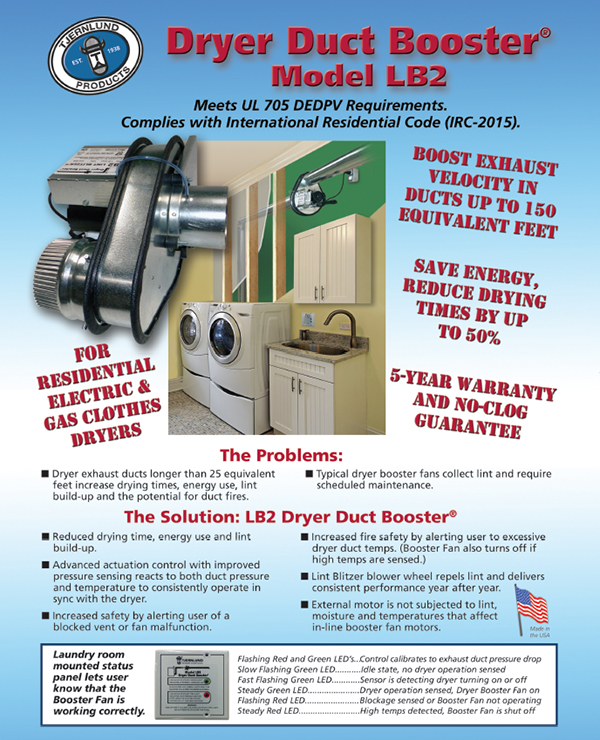

Model LB2 - No Clog Dryer Duct Booster®
Dry your clothes faster and prevent lint build up with the new Dryer Duct Booster®.
Clothes dryers are often installed in areas of homes where they cannot work effectively. This is because moist air cannot effectively exit the dryer and exhaust to the outside—bogging down the entire drying process. If a dryer’s vent run is over 25 equivalent feet* or the dryer is experiencing long drying time, your dryer may need a dryer booster fan. The Dryer Duct Booster can also reduce the potential fire hazard associated with lint buildup.
* When using equivalent feet a 90° elbow equals 5 feet and a
45° elbow equals 2.5 feet. Some dryers can exhaust beyond 25 equivalent feet without a booster fan.
Dryer Duct Booster® Head-to-Head Lint Test!
Meets UL 705 DEDPV & IRC-2015 Requirements

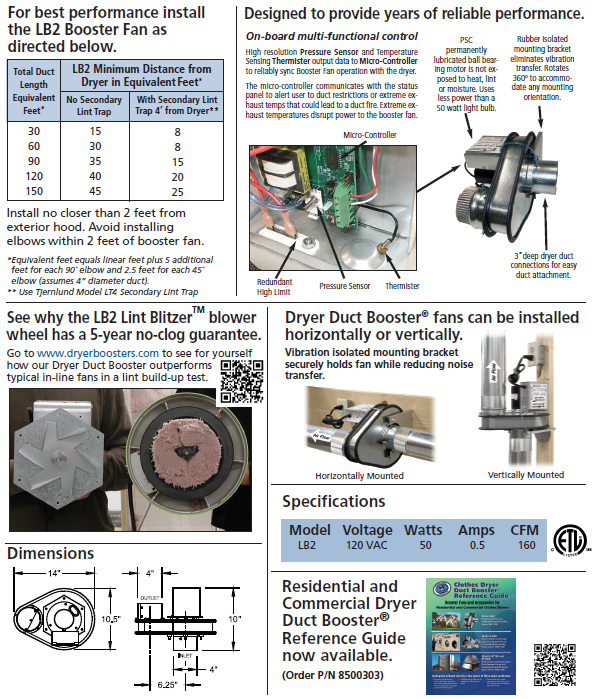

Dryer Duct Booster Saves significant energy – reduces drying times 50% or more. Reduces lint build-up, dust & fire hazards by maintaining proper velocity in duct runs up to 150 equivalent feet. Features the Lint Blitzer™ material handling wheel & 5 year no-clog guarantee. 50 watt motor is not exposed to heat, lint or moisture. Includes 115 VAC cord – automatic operation. Suitable for gas and electric dryers.
Related Products
Duct Booster® Fans
Duct Booster® Fans Your Best Value for boosting air flow in ducts or for powered air intakes and exhausts. Duct Booster® Fans Support Documents LITERATURE Full Line LitVentilation Products LitDB-2 SpecEF-6, 8, 10, 12, 14 SpecM-4, 6, 8 SpecPS1503 Fan Switch Lit INSTRUCTIONS DB-2 InstEF-6, 8, 10, 12, 14 InstM-4,
M-Series Fans (Metal Housing)
M-Series Fans Support Documents M-Series Inst Complete Doc Library M-Series fans (metal housing) are ideal for long runs or air supply and exhaust applications requiring exacting performance. Specifications Model Amps Watts RPM Volts CFM VS Static Pressure 0″ 1/8″ 1/4″ 3/8″ 1/2″ 3/4″ 1″ 1 1/2″ 2″ Duct Dia. Weight M-4
Model PS1503 Duct Airstat Positive Pressure Activated Switch
Senses positive pressure from central blower Works year-round for both heating and a/c Simplifies wiring PS1503 Positive Pressure Activated Switch Inst Related Products
